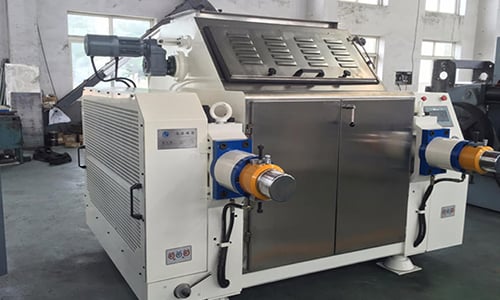

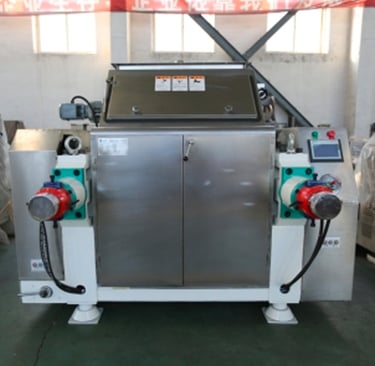

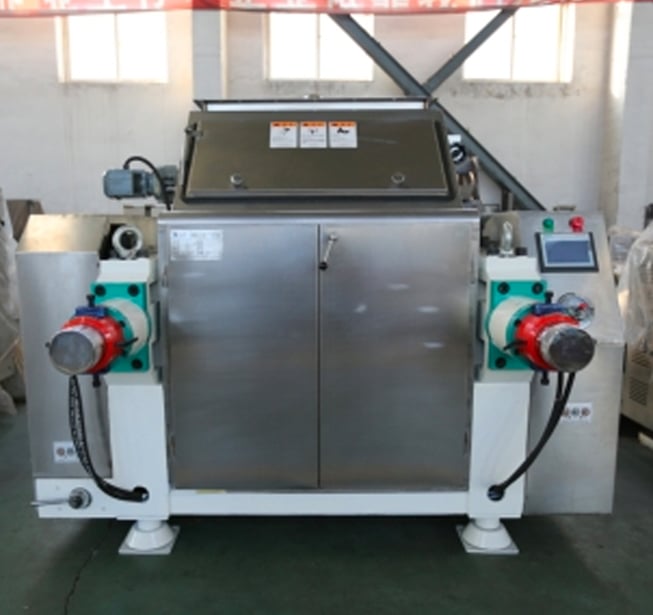

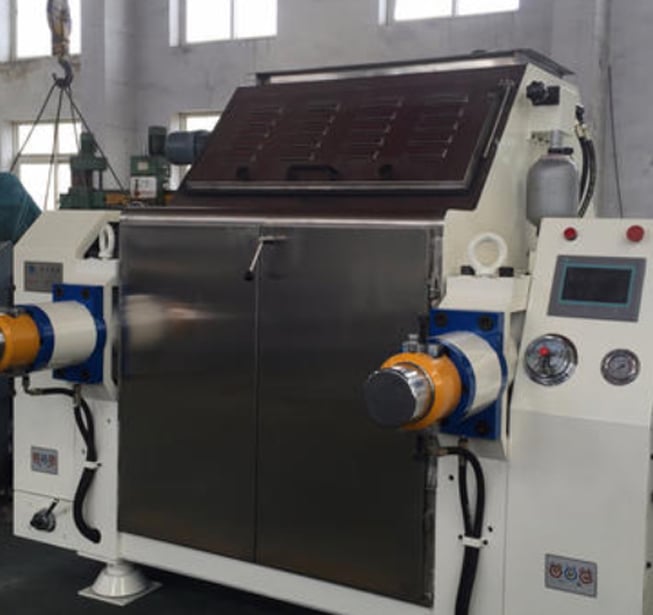

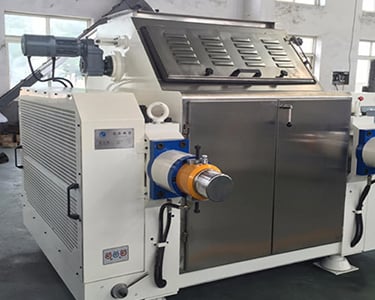

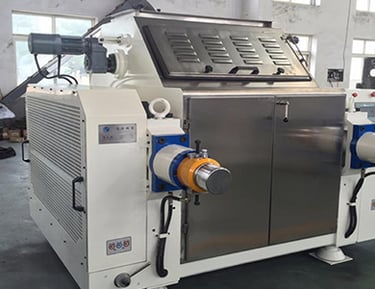

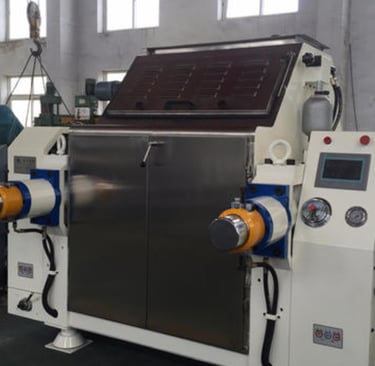

Oat Flaker
Brand：GROSPER
Model of equipment：FO6100SF
Motor power：37kw
Roller size ：600*1000mm
Embryo thickness：0.3～0.45mm(adjustable)
Weight：6.2T
Equipment size ：2100×2000×1730mm
Random accessories：Main body×1；Motor×1；Motor slide×2；transmission belt×2；Stainless steel feed hoppers ×1；manual×1；
MODEL OF 30-50T OAT FLAKER
FO6100SF-50T
OAT FLAKER
FO6100F-50T
OAT FLAKER
FO6080F-40T
OAT FLAKER
Output：40-50T/24H
Single driven motor
Round Support System
Roller size ：600*1000mm
Select high nickel-chromium-molybdenum alloy rolls
Total power：37kW+0.55kW
Weight：6.2t
Output：40-50T/24H
Single driven motor
Round Support System
Roller size ：600*1000mm
Select high nickel-chromium-molybdenum alloy rolls
Total power：18.5kW*2+0.55kW
Weight：6.1t
Output：30-40T/24H
Double driven motor
Round Support System
Roller size ：600*800mm
Select high nickel-chromium-molybdenum alloy rolls
Total power:15kW*2+0.55kW
Weight：5.5t
Model indication：F=FLaking； O=Oat； 6=dia. 600mm； 100=Length 1000mm ；
S=Single driven motor； F=Food grade
Basic configuration ：whole closed structure. Both side are with heat dissipation network. round bearing base . Front and back door plate can be opened , easy to clean . Both sides of bottom have material receiving port ,easy to observe the effect of material.
Basic configuration ：whole closed structure. Both side are with heat dissipation network. round bearing base . Front and back door plate can be opened , easy to clean . Both sides of bottom have material receiving port ,easy to observe the effect of material.

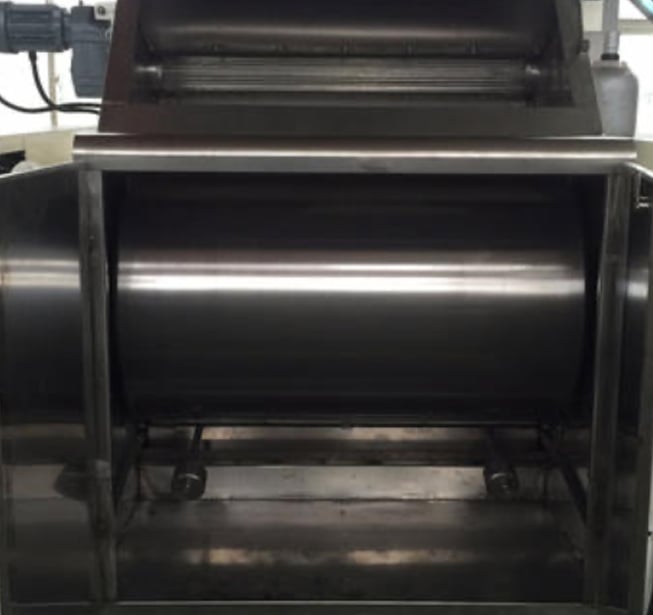

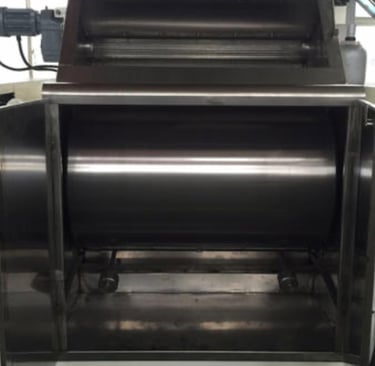

Roller：The high Ni Cr Mo alloy roll is poured by German centrifuge ,the hard layer is uniform. Rolls are dynamically balanced
Pulley： The imported belt tightening process is adopted for the belt pulley
Equipment base ：the base is welded steel ,which is quenched and tempered to eliminate internal stress and ensure that the base is not deformed
Leak proof device：leakage proof material by pinnacle baffle

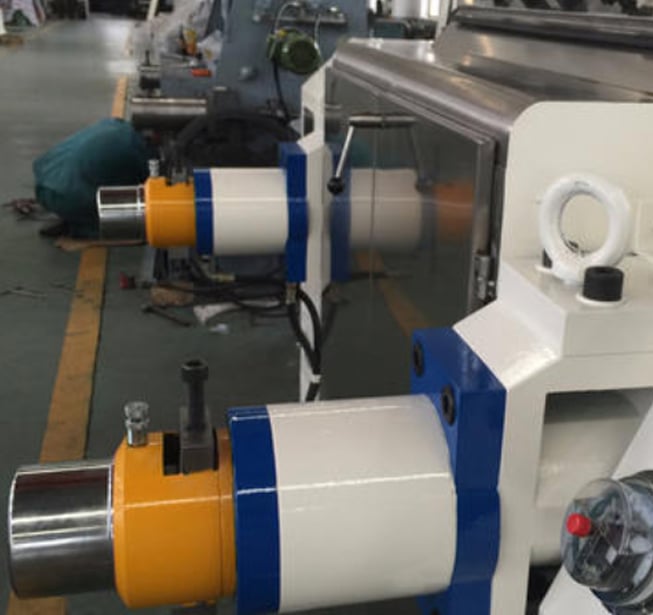

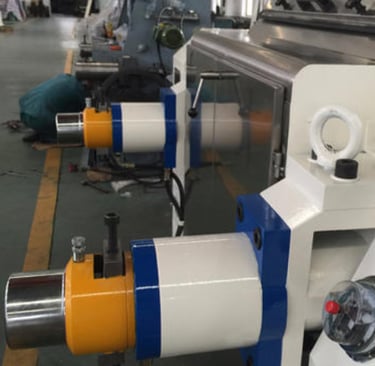

Tight-roll function:hydraulic tighten roller

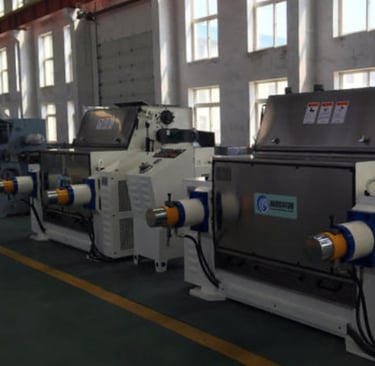

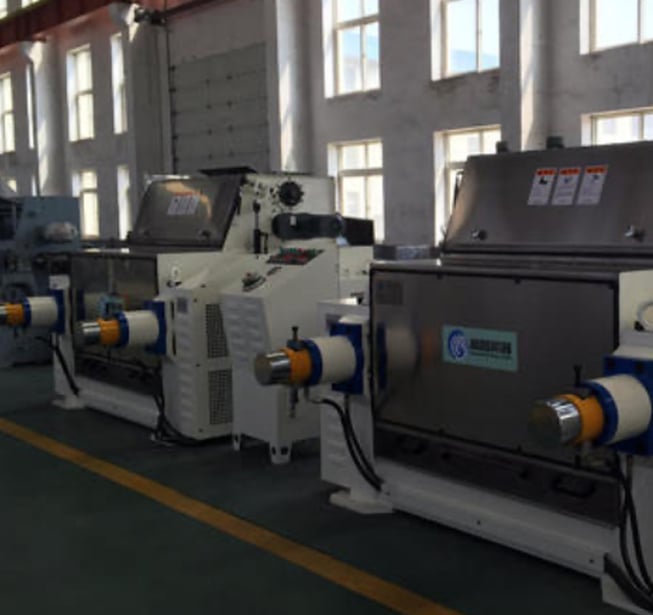

Photo of grain water cooler flaker
